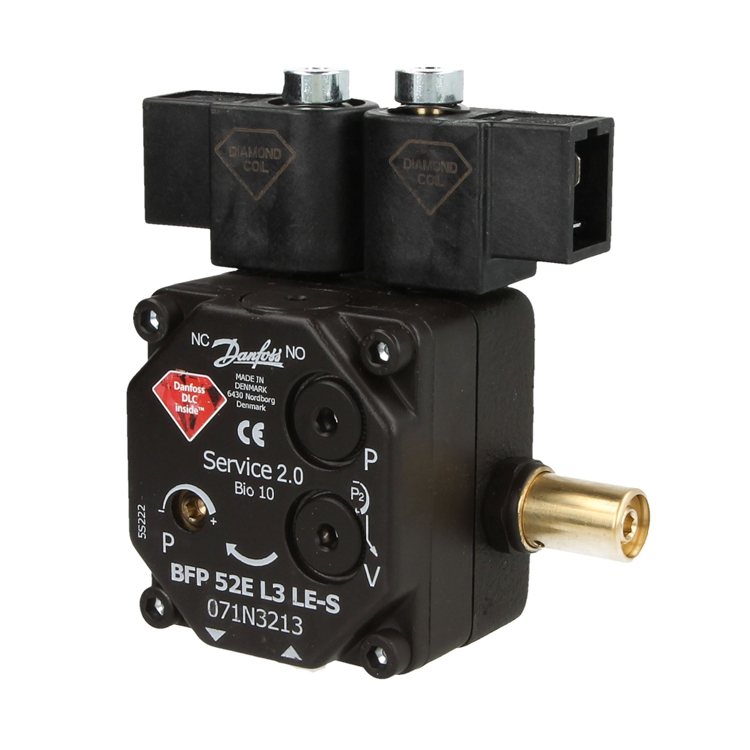

OLJNA ČRPALKA DANFOSS DIAMOND BFP 52E L3R LE-S 071N3213
Cena
207.16€ (cena z 22% DDV)
Opis
Podatki o izdelku
Bruto masa | 1.3 kg |
Neto masa | 1.26 kg |
EAN | 5702425156434 |
1 or 2 stage | 2 |
Capacity [l/h] | 24 L/h |
Capacity group | 0-24 |
Capacity range [l/h] [Max] | 24 L/h |
Capacity range [l/h] [Min] | 0 L/h |
Closing function | Cut-off |
Coil consumption [W] | 9 W |
Coil Current | AC |
Coil voltage [V] AC | 220 - 230 |
Definition point [l/h] | 2800 min-1, 10 bar, 4.3 cSt |
Factory pressure setting [bar] | 10 bar |
Factory pressure setting stage 2 [Bar] | 13 bar |
Filter area [cm²] | 11 cm² |
Filter grade [µm] | 200 |
Flats/key on the shaft | 1 flat |
Hitrost [vrt/min] [Maks] | 3450 rpm |
Hitrost [vrt/min] [Min] | 2400 rpm |
Napajalna napetost [V] | 230 V |
NO type | New |
Nozzle/pressure outlet | R |
Number of stages | 2 |
Oil pump speed [op/min] | 3450 cpm |
Oil type | Kerosene/Light oil |
Opis | BFP 52E L3R LE-S, SERVICE |
Opombe | Rotation and nozzle/pressure outlet are always determined viewing from the shaft end of the pump. |
Pipe connection | 2 pipes |
Poraba energije [W] | 45 W |
Pressure feed line [bar] [Max] | 2 bar |
Pressure kerosene [bar] [Max] | 12 bar |
Pressure stage 2 [bar] [Max] | 25 bar |
Rotation | L |
Serie | BFP |
Shaft diameter [mm] | 8 mm |
Skupina izdelkov | Oil Pumps |
Stopnja zaščite | IP40 |
Suction Line Vacuum [bar] [Max] | 0.4 bar |
Supply peak voltage [V] [Max] | 253 V |
Supply peak voltage [V] [Min] | 207 V |
Supply voltage [V] [Max] | 230 V |
Supply voltage [V] [Min] | 220 V |
Temperatura medija [°C] [Maks] | 70 °C |
Temperatura medija [°C] [Min] | 0 °C |
Temperatura okolice [°C] [Maks] | 70 °C |
Temperatura okolice [°C] [Min] | -20 °C |
Temperatura skladiščenja [°C] [Maks] | 70 °C |
Temperatura skladiščenja [°C] [Min] | -20 °C |
Tip | BFP 52 LE-S |
Tlak [bar] [Maks] | 25 bar |
Tlak [bar] [Min] | 7 bar |
Viscosity [cSt] [Max] | 12 cSt |
Viscosity [cSt] [Min] | 1.3 cSt |
Vrsta aplikacije | Domestic |
Vrsta filtra | Cartridge |
Vrsta pogona | NC+NO |
Zagonski navor [Nm] [Maks] | 0.1 Nm |
